A construction staking survey is not just for big subdivisions. Small builds need one too. A shed placed two feet over a property line, a pool built too close to a setback, or an addition that clips an easement can all turn into costly fixes. This guide covers when small projects need staking, how the scope changes for smaller jobs, and what goes wrong when developers skip it.

What Counts as a Small Build?

A small build is any project that adds structure to a lot without a full site plan overhaul. Think additions, detached garages, sheds, pools, fences, and small accessory units. These projects are smaller in scale than new subdivisions or commercial sites, but they still sit inside zoning rules, setback lines, and easements.

Many developers assume small scale means low risk. Lot lines in older Pembroke Pines neighborhoods often sit closer together than newer developments, which makes a small measuring mistake more likely to cross a line that matters.

Why Small Builds Still Need a Construction Staking Survey

Additions and Room Extensions

An addition changes the footprint of a house. That new footprint has to meet the same setback rules as the original structure. A staking survey marks the exact corners of the addition, so the crew builds it inside the approved line instead of a few inches past it.

Sheds, Garages, and Detached Structures

Detached structures often have their own setback rules, separate from the main house. A shed placed close to a side yard might meet code on paper but violate it in the field if the actual property line sits differently than assumed. Staking confirms the real line before any footers go in.

Pools, Fences, and Site Improvements

Pools need clearance from property lines, easements, and sometimes septic fields. Fences built along an assumed line instead of a surveyed one are one of the most common sources of neighbor disputes. A staking survey settles this before construction, not after a neighbor complains.

How Staking Scope Changes for Small Projects

A staking survey for a small build looks different from staking on a large site. Large projects need stakes across an entire grading plan, spread over acres of land. A small build usually needs a handful of key points.

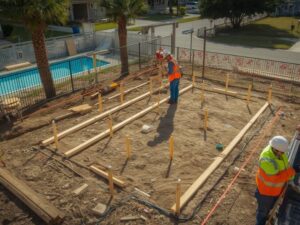

For an addition, that might mean four corner stakes and a reference line tied to the existing house. For a shed or garage, it might mean two or three points marking the structure’s footprint against the nearest property line. The scope is smaller, but the purpose is the same: confirm the plan matches the ground before anyone builds.

This smaller scope also means small builds often cost less for staking than large commercial jobs, since the surveyor spends less field time on site.

Permit Triggers Small Developers Often Miss

Small projects can still trigger permit requirements that catch developers off guard. An addition that adds square footage may require a new setback check, even if the original house was built decades ago under different rules. A pool near a septic field may need clearance verification before the county approves the permit. A fence built along a disputed line can hold up a certificate of occupancy on an unrelated project next door.

Staking data gives the permit reviewer something concrete to check against, instead of a homeowner’s best guess about where the line sits.

Steps to Get a Construction Staking Survey for a Small Build

1. Confirm your permit set is final before you request staking, since late design changes mean restaking.
2. Ask the surveyor to stake only the points relevant to your project, such as addition corners or a shed footprint.
3. Request written confirmation of setback distances from each staked point to the nearest property line.
4. Keep the staking report on file in case an inspector or neighbor questions the placement later.
5. Call the surveyor back if construction pauses for more than a few weeks, since stakes can shift or disappear.

What Happens When Small Builds Skip Staking

Skipping staking on a small project doesn’t remove the risk. It just moves the risk to a later, more expensive point in the project.

A shed built a foot over the line often means tearing it down and moving it once a neighbor or inspector notices. An addition that clips a setback can stall a final inspection until the builder proves the structure meets code, sometimes requiring a variance application that adds months to the timeline. A pool poured too close to an easement can force a redesign after the concrete has already cured, which is one of the most expensive mistakes possible on a small job.

None of these problems are common on projects that stake first. They are common on projects.

Frequently Asked Questions

Do I need a construction staking survey for a small shed?

If the shed is close to a property line or setback, a construction staking survey confirms the correct location before building begins. This helps prevent boundary disputes and costly relocation later.

How does staking for a small project differ from a large construction site?

A small project typically requires only a few layout points, such as the building corners or footprint. Larger projects require staking for grading, utilities, roads, and multiple structures, making the process more extensive.

Can I use a property survey instead of a construction staking survey?

A property survey identifies boundary lines and corners, but it does not mark where a new structure should be built. A construction staking survey transfers the approved design to the ground so the crew can build in the correct location.

What if my project has already started without construction staking?

A surveyor can still perform construction staking after work begins, but it is most effective before footings or slabs are poured. Correcting placement errors after concrete has been installed is often much more expensive.

Does a construction staking survey help with permit approval for small projects?

Yes. Many building departments require verified setback measurements for additions, pools, detached structures, and similar projects. Construction staking provides accurate layout information that supports the permitting process.
