Condo boards love entrance projects. New gates, a wider drive, better signage, fresh landscaping. Then someone asks who actually owns the strip of pavement the new gate sits on. Land surveying answers that question before the concrete truck shows up.

A condominium entrance sits on a patchwork of ownership and legal rights. Redraw it without mapping that patchwork first and you risk a vote challenge, a permit denial or a fire marshal shutting the job down.

Verifying Common-Element and Limited-Common-Element Boundaries

A condominium isn’t one parcel with one owner. The declaration splits the property into units, common elements and limited common elements. Each category carries different rules.

Common elements belong to all owners together. The association maintains them. Limited common elements serve one unit or a small group, like an assigned parking space or a private walkway to a ground floor door.

Entrance areas mix all three more often than boards expect. A drive lane may be common. The walkway serving two front units may be limited in common. A planter bed may sit inside a unit boundary if the declaration drew it that way.

Why it matters comes down to approval. Changing a common element usually requires association action, and many declarations require an owner to vote for a material alteration. Touching a limited common element can require consent from the owners it serves. Get that backwards and a single owner can undo the project.

Your surveyor works from the recorded declaration and its exhibits. Those exhibits show the geometry. The field crew ties that geometry to what’s actually built, then flags where the two disagree.

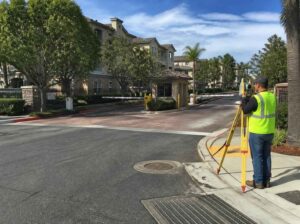

Mapping Existing Access, Curbs, Walkways, and Entry Features

You can’t redesign what nobody measured. A current site survey of the entrance area gives the designer real dimensions instead of assumptions.

The drawing should show everything in the work area:

• Drive lane widths, curb lines, radii and pavement edges
• Sidewalks, ramps, landings and crosswalk markings
• Gates, gate arms, call boxes, bollards and guard structures
• Signs, walls, fences, light poles and their foundations
• Landscaping beds, irrigation heads and mature tree trunks
• Inlets, grates, pipes, valve boxes and visible utility structures
• Spot elevations across the drive and along every walkway

Elevations carry more weight than most people think. Entrance work often changes grade by a few inches, and a few inches is enough to break a ramp slope or pond water against a building.

Add the right of way line. Most entrances meet a public street, and the boundary between private drive and public right of way controls who permits what. That line rarely sits where the pavement changes color.

Checking Easements and Rights That Limit Entrance Changes

Entrances attract easements. Utilities run there because that’s where the connection point is. Neighbors sometimes hold access rights across the same drive.

Common restrictions include utility easements for water, sewer, power and communications. A gate foundation or wall footing inside one of those corridors can be removed by the utility at your cost. Some easements ban any permanent structure outright.

Shared access easements come up on properties carved out of a larger development. A neighboring parcel may hold a recorded right to use your drive. Narrowing that drive or adding a gate can violate the easement even if it improves your project.

Emergency service access is its own category. Many recorded plats carry fire lane dedications or emergency access easements. Those usually require the lane to stay open, at a stated width, with no obstruction.

Have the surveyor plot every easement listed in the title work onto the entrance drawing. Reading the list isn’t enough. You need to see where the lines fall against the proposed gate.

Coordinating the New Layout With Accessibility and Fire Access

Two sets of rules constrain almost every entrance redesign.

Accessibility comes first. Condominium properties may fall under fair housing design rules, accessibility standards or both, depending on age, type and how the space is used. The accessible route through the entrance has to stay continuous, at required width, with running slope and cross slope inside the limits.

Cross slope is the one that fails inspections. A walkway that looks flat can measure well over the allowed slope. Only measured elevations catch that before construction.

Fire access comes second and carries more weight than any design preference. Fire codes set minimum clear width for apparatus lanes, minimum inside and outside turning radii and vertical clearance under any arch, canopy or gate structure. Dead ends require an approved turnaround.

Gates bring their own requirements. Most jurisdictions require an approved emergency override, a key box or a strobe activated opener. Width when open matters more than width when closed.

Give the designer a survey with real dimensions and elevations. Then run the fire truck turning template on that drawing before you commit to a gate location. Fixing a radius on paper costs nothing.

Updating Condominium Plans After the Entrance Is Reconfigured

The project isn’t finished when the paving cures. Records need to match what got built.

An as-built survey documents the completed work. Associations use it for maintenance planning, insurance schedules and future contractor bids. It also protects the board by showing exactly what was approved and constructed.

Some changes go further. If the work shifted the line between common and limited common elements, or added a structure that changes the recorded exhibits, an amendment to the declaration may be required. Requirements vary by state and by declaration, so the association’s attorney should make that call.

Permitting often requires as-built documentation too. Municipalities may want a signed record drawing before closing the permit, especially where drainage or accessible routes changed.

Store the file where the next board can find it. Entrance projects come back around every fifteen years, and the survey you paid for today saves the next board from paying twice.

Before the Design Starts

• Recorded declaration and all exhibits showing the entrance area
• Current title work with every easement plotted, not just listed
• Site survey with dimensions, spot elevations and the right of way line
• Confirmation of which elements are common and which are limited common
• Fire department requirements for lane width, radii and gate access
• Written scope for the as-built survey at project close

Entrance projects look simple from the parking lot. The survey is what keeps them simple. Knowing where the common elements end, where the easements run and how much room the fire truck needs turns a risky renovation into a permit application that clears on the first pass. Order the survey before the design, not after the board approves a rendering. It’s the cheapest line item in the budget and the one that protects every dollar behind it.

Frequently Asked Questions

Who owns a condominium entrance drive?

That depends on the recorded declaration and its exhibits. Most entrance drives are common elements owned by all unit owners together and maintained by the association. Some portions may be limited common elements or fall inside a public right of way. A survey compared against the declaration settles it.

Do we need owner approval to change the entrance?

Often yes, since many declarations require a member vote for material alterations to common elements. The threshold varies by declaration and by state statute. Work classified as maintenance or repair usually has a lower bar than an alteration. Ask the association attorney before scheduling the work.

What kind of survey does an entrance project need?

Most projects need a current site or topographic survey of the entrance area with easements plotted. Add boundary work if the right of way line or property corners are unclear. An as-built survey at the end documents the finished condition. The scope should be written before design begins.

Can we add a gate to an existing condo entrance?

Sometimes, though, several approvals stack up. Fire officials review emergency access, the local jurisdiction reviews the permit and the association follows its own approval process. Recorded easements can also prohibit obstructions in the drive. Confirm all four before spending money on design.

How long does the survey work take?

Field work on a single entrance area is usually short, often a day or less. Research of the declaration, plat and title documents takes longer and drives the schedule. Complex properties with many recorded amendments add time. Order it early so it doesn’t sit on the critical path.
