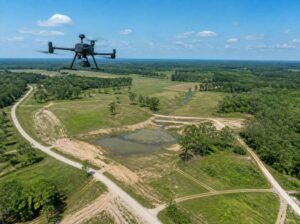

Pull out the site plan for a 300 acre holding and check the date. If it says 2014, it’s fiction. Drone surveying gives you a current picture of the whole property in a day or two, which matters when your last reliable mapping predates two access roads, a pond that silted in and forty acres of clearing nobody documented.

Large properties change faster than their paperwork. Aerial mapping is the cheapest way to catch up, and the value depends almost entirely on the ground control behind it.

Updating Old Site Plans After Years of Property Changes

Old plans age badly on big parcels. Timber gets cut. A tenant grades a laydown yard. A neighbor’s drainage cuts a new channel across your back forty. None of that makes it into the file drawer.

Walking a large site with a crew to find every change is slow and expensive. A drone flight covers ground at a rate no field crew can match, and it produces a photo accurate image of the entire property rather than a set of scattered shots. You see what’s there, not what someone remembers being there.

The output that developers use most is the orthomosaic. It’s a single stitched image, corrected for lens distortion and terrain, so you can measure directly on it. Overlay your old plan on that image and the differences jump out in about ten minutes.

What to do: fly the property before you spend money on design. A dated aerial base costs less than one round of revisions after the engineer finds out the site changed.

Mapping New Roads, Building Pads, and Site Improvements

Aerial data documents surface features well. Access roads, gravel drives, parking areas, graded pads, ditches, culvert headwalls, ponds and stockpiles all show up clearly in both the imagery and the elevation model.

Stockpiles are a good example of what this buys you. A drone flight produces a surface model that lets a surveyor compute volumes across dozens of piles at once. Doing that with a rod and a data collector takes days on a large site.

Utility corridors show at the surface. You’ll see poles, pedestals, manhole rims, valve boxes and cleared right of way. Anything buried stays invisible, so pair the flight with a locate request and test holes when you need depth.

Two limits are worth knowing up front. Heavy tree canopy blocks the camera, so bare ground under woods won’t model well without LiDAR or field shots. And drones can’t see under roofs, bridges or dense brush, which means some features still need a crew on foot.

Using Ground Control to Improve Large-Site Mapping Accuracy

This is the part that separates a survey product from a nice picture. Ground control points are marked targets on the ground, set and measured by a surveyor with GNSS equipment tied to published control. The software uses them to place the whole model in real coordinates.

Spacing matters on large properties. Control spread across the site holds the model flat, while control clustered near the takeoff point lets the edges drift vertically. That drift is where bad contours come from, and it’s not obvious by looking at the imagery.

RTK and PPK drones reduce how many targets you need, though they don’t remove the need for independent checks. A good surveyor still sets checkpoints that never go into the processing. Those checkpoints prove the accuracy instead of assuming it.

Ask for a control report with every job. It should list the coordinate system, the vertical datum, how control was established and the residuals at each checkpoint. Without that page, you have no way to defend the mapping later.

Comparing Current Drone Data With Previous Property Records

The real power shows up when you compare two dates. New imagery over an old survey reveals what moved, what grew and what disappeared.

Surface comparison is the quantitative version. Take the current elevation model, subtract an earlier one and you get a map of cut and fill across the whole property. That’s how owners track erosion in ditches, sediment building in a pond or how much material actually left a borrow area.

Vegetation change tells its own story. Encroaching brush along a fence line, a neighbor’s field creeping over a boundary, tree growth into a power corridor, all visible with two dated images side by side.

One warning. Drone data shows physical conditions, not legal boundaries. It can flag a fence that appears to sit inside your line, and only a licensed boundary survey can determine where that line actually falls. Treat aerial change detection as the alert, not the verdict.

Creating Updated Mapping Files for Future Property Planning

The flight is one afternoon. The files last for years, so specify them carefully.

A standard package for a large property usually includes several products:

• A georeferenced orthomosaic, delivered as a GeoTIFF for GIS use and often a compressed version for sharing
• A digital surface model and a bare earth terrain model, since one includes vegetation and structures and the other doesn’t
• Contours at a stated interval, generated from the terrain model
• A classified point cloud in LAS or LAZ format for engineers who want to work with the raw data
• CAD files in DWG or DXF, with linework and surfaces broken onto sensible layers
• Shapefiles or geodatabase layers when the property is managed in GIS

Two settings drive everything above. Ground sample distance controls how much detail the imagery holds, and flight height plus camera choice controls that. Contour interval should match the intended use, since a one foot interval on rolling acreage is useful and a five foot interval is decoration.

Name your coordinate system in the contract. State plane with a stated zone and a named vertical datum keeps every future project aligned with this one.

Before You Book the Flight

• Confirm the pilot holds a current FAA Part 107 certificate and carries insurance
• Check whether the property sits in controlled airspace requiring authorization
• Ask who sets the ground control and how many checkpoints will be used
• Specify coordinate system, vertical datum, contour interval and file formats in writing
• Schedule the flight for leaf-off conditions if wooded areas need terrain data
• Request the control report and accuracy statement as part of the job, not as an extra

Frequently Asked Questions

How accurate is drone surveying on a large property?

Accuracy depends on ground control, flight planning and the equipment used. Well controlled photogrammetric work on open terrain commonly lands within a tenth or two of a foot vertically, with horizontal accuracy usually better than that. Dense vegetation, steep slopes and poor control spacing all degrade those numbers. Ask your surveyor for the checkpoint residuals rather than accepting a general claim.

How much ground can a drone cover in one flight day?

Coverage varies with flight height, camera, overlap settings and required accuracy. Higher altitudes cover more ground per battery but produce coarser detail, so there’s a trade to make. Several hundred acres in a day is realistic for a mapping grade project on open land. Ground control setup often takes longer than the flying itself.

Does drone surveying replace a boundary survey?

No, and treating it that way causes problems. Boundary determination requires research of deeds and recorded plats, recovery of monuments in the field and the professional judgment of a licensed surveyor. Aerial mapping shows physical features and can help locate visible evidence. The two work together, with the drone documenting conditions and the boundary work establishing lines.

What rules apply to commercial drone flights?

Commercial drone operations in the United States fall under FAA Part 107, which requires a certified remote pilot. Flights in controlled airspace need authorization, and some areas carry restrictions that take time to clear. Aircraft must be registered, and many providers carry specific drone liability coverage. Confirm all of this before the crew arrives rather than after.

How often should a large property be re-flown?

Active construction sites benefit from monthly flights, since progress tracking and volume checks need current data. Properties under slow change are usually fine on an annual or biennial cycle. Trigger an update whenever grading, clearing or new construction happens, or before any design work begins. Each flight also becomes the baseline for the next comparison.
