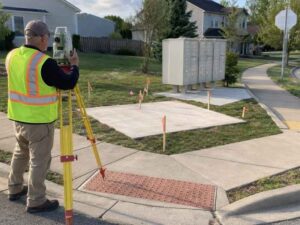

Once a water or sewer project gets built, someone still has to check exactly where everything ended up. That’s what as built surveys are for. Pipes don’t always land in the exact spot shown on the design plans, and small shifts happen during construction all the time. An as built survey records where the finished pipes, valves, and other parts actually sit in the ground. That record becomes the real map people use later, not just the plan drawn before work began. Owners, engineers, and repair crews all end up using this record at some point, whether it’s for a fix, a future hookup, or just closing out the job’s paperwork.

Recording Where the Finished Pipes Actually Sit

Once water and sewer pipes go into the ground, the exact spot they landed in needs to be written down. This isn’t about marking a plan before work starts. It’s about writing down where the pipes actually ended up once the crew finished the job.

Crews change things during construction more often than people expect. A pipe might shift a few feet to miss another line already in the ground, or a connection might land somewhere slightly different than planned. Maybe an old gas line was found right where the sewer pipe was supposed to go, so the crew moved the path around it. Writing down the true, final spot means the record matches what’s really there, not just the old drawing.

Writing Down Heights After the Work Is Done

Rim heights, pipe bottom heights, and connection points all need to be checked after the pipes go in, when the project calls for it. This means measuring manholes, cleanouts, drains, and the exact height where pipes connect to other parts.

These numbers matter for more than just paperwork. Water needs to flow downhill through a sewer pipe, so the height at each connection point tells engineers whether the system will actually work. Getting these numbers right after the work is done shows that the system matches what repair crews will need to know later.

Locating Valves, Hydrants, and Other Parts You Can See

Beyond the pipes themselves, an as built survey also marks the parts you can actually see above ground. That includes valves, hydrants, meter boxes, manholes, cleanouts, and other spots crews use to reach the pipes below.

These parts matter long after building is done. A repair crew showing up years later needs to know exactly where a valve sits, not roughly where it might be. Digging in the wrong spot to find a buried valve wastes time and can even break other lines nearby. Marking these spots creates a record that makes future repairs and checks a lot easier.

Comparing What Got Built With What Was Planned

Once the final measurements are in hand, they get checked against the original design plans. This shows where things changed during building, whether that’s a shift in direction, a different depth, a new height, or a connection that moved.

This step isn’t about how the work was laid out before building started, or catching mistakes early. It’s about writing down what actually got built, after the fact, so there’s a clear, true record of the finished job.

Getting the Data Ready to Close Out the Job

All this field information eventually comes together into final drawings and papers. That’s what officially wraps up a water or sewer project.

These final records matter to a lot of people down the road. Owners, engineers, the people who run the utility, and the agencies that checked the project all count on true as built data once the work is done. Without it, future work on the same system gets a lot harder and a lot riskier.

Frequently Asked Questions

What does an as built survey show for water and sewer work?

It can show the final spots and heights of the pipes, manholes, valves, hydrants, and other parts that got put in the ground.

When should an as built survey happen for underground pipes?

Key measurements are often best taken before the ground gets covered back up. Parts you can see are usually recorded once the work is fully done.

Do sewer pipe bottom heights get included in an as built survey?

They can be, when the project calls for it. These heights record how far down the inside bottom of the pipe sits at certain points.

Why are the final pipe spots different from the original plans?

Things often shift during building because of what’s found in the ground or other pipes already there. That’s why the final record should show what was truly built, not just what was first planned.

Who uses as built survey information after a job is done?

Engineers, property owners, the people who run the utility, builders, and the agencies that checked the project all use this data for records, repairs, future hookups, and closing out the job.
