Moving a guardhouse sounds simple on paper. In real life, it rarely is. A community can’t just pick a new spot and start building. A plat of survey gives the project team real numbers to work with before anyone touches the entrance. It shows what’s actually there today. It doesn’t rely on what an old site plan says should be there.

This matters most at a gated entrance. Every foot of space near the gate does a job. Cars need room to turn. Visitors need room to stop. Service vehicles need room to pass through without trouble.

Mapping the Existing Guardhouse Footprint Before Relocation

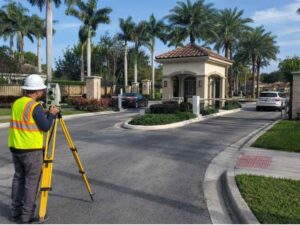

Before anyone plans a new spot for the guardhouse, someone needs to know exactly where the old one sits today. That means measuring its position against the pavement, entrance lanes, curbs, sidewalks, and walls around it.

A plat of survey captures all of this. It shows how close the guardhouse sits to the travel lanes. It shows where the curbs run and how the sidewalks connect nearby. This becomes the starting layout everyone works from once a new location gets considered.

Checking the Proposed Guardhouse Area Against Recorded Site Features

Once a new spot gets picked out, someone has to check it against what’s on record for the property. A survey can compare the proposed guardhouse area with recorded features tied to the entrance.

This isn’t a full legal review of every document on file. It’s a focused check. Does the new spot land on or near something already shown in the property records? If it does, that needs attention before the plan moves any further.

Catching this early matters. It saves everyone from picking a spot that looks fine on a drawing but runs into a real problem once the details get checked.

Measuring Entrance-Lane Geometry Around the New Guardhouse Position

A gated entrance depends on tight, exact measurements. Medians, curbs, travel lanes, gate arms, and turning areas all have to work together. Move the guardhouse even a few feet, and that balance can shift.

A survey measures this geometry around the proposed new position. It shows how much room remains for cars to turn. It shows how much space visitors have to stop safely. It also shows whether service vehicles can still get through without getting stuck. That includes trash trucks or moving vans.

This isn’t about property lines or general driveway rules. It’s about making sure the entrance still works right. Residents and visitors expect it to work that way, even once the guardhouse sits somewhere new.

Documenting Gate Equipment and Other Improvements That May Stay in Place

Not everything near the guardhouse is moving. Gate arms, columns, walls, signs, and traffic islands often stay right where they are. A plat of survey documents each of these fixed features and their exact locations.

This matters because the relocated guardhouse has to fit around what’s staying put. A designer can’t plan a new spot without knowing exactly where the gate arm swings. They also need to know how close the columns sit to the road. The survey gives them that picture before any decisions get locked in.

Without this record, a design could end up conflicting with equipment nobody planned to move in the first place. That kind of conflict is much cheaper to catch on paper than to discover during construction.

Using the Plat of Survey to Coordinate the Guardhouse Relocation Plan

Once all the measurements are in hand, the plat becomes a shared reference point. Architects, engineers, contractors, and community representatives can all work from the same accurate picture of the entrance.

This keeps the relocation plan grounded in real, measured conditions. It doesn’t rely on assumptions pulled from an old site drawing. Everyone involved can see how the existing entrance and the proposed guardhouse position fit together. They can also see where adjustments might still be needed.

That kind of shared starting point tends to prevent surprises later. It helps most once equipment gets ordered or construction begins. Changes get harder and more costly to make at that point.

Frequently Asked Questions

What should a plat of survey show before a gated community guardhouse is moved?

The needed scope depends on the project. In most cases, the relevant existing features around the entrance need to be located. This helps the design team understand the available space and any physical limits.

Can a plat of survey show whether the new guardhouse location conflicts with recorded property information?

Applicable recorded information can be reviewed and shown as part of the survey scope. Specific legal or design questions that come up may still need input from the right professionals.

Should the survey be completed before the new guardhouse location is finalized?

Getting accurate existing-condition information early helps the project team look at possible locations. This can happen before locking in a final entrance layout. It also gives everyone a chance to catch problems while changes are still easy to make.
